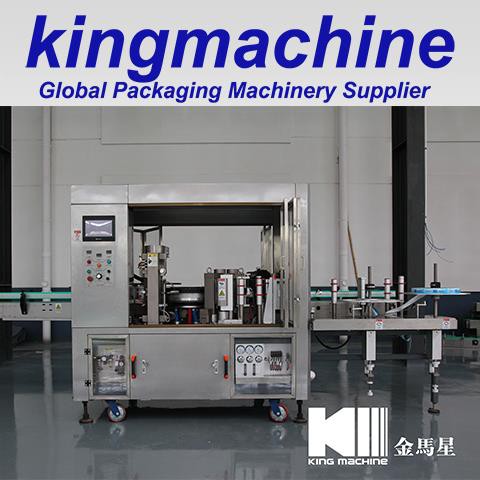

Hot Glue Labeling Machine

Hot Glue Labeling Machine

1).Control: Motion Controller, Frequency Converter. 2). Safety device a. The drive part is equipped with overloaded protection device. b. Abnormal state end device for star wheel c. None bottle supply decor d. Bottle Overload decor

Product Details


Hot glue labeling machine.jpg


1.1 Feature:
1).The adjustment of label cutting blade is easy and simple.
2).Vacuum-grip cylinder is made of high hardness material, the additional old handler can reduce the frictions of labels and prevent static electricity.
3).The change-over of shape pars can be finished within 10 minutes;
4).The position of cutting blade can be quickly and accurately adjusted by manual control cabinet;
5).Vacuum-grip cylinder and cutting unit adopt special material which are wear proof and heat protection;
The self-adjustment knob can reset the I-MARK position while change he cutting length oflabels;


Main technical parameter of the equipment

No.

Item

Parameter data

1

Voltage

380V

2

Frequency

60Hz

3

Power

8KW

4

Available bottle dimension

Diameter:40-105mm, height=80-350MM

5

Label specification

Length:125-325mm,Height:20-150mm

6

Gluing way

Roll painting(about 10mm, both label head and tail)

7

Capacity

9,000-12,000 bottles per hour (500ml bottle)

8

Glue Consumption

l kg/ 100,000 bolttles

(label height:50mm)

9

Compressed Air Pressure

MIN5.0bar  MAX8.0bar

10

Consumption of Compressed Air

0.2M³/minute

11

Total Weight

2500Kg

12

Overall dimension

L=3150,W=1770,H=1800



1.2 Using Label

1).Label Material: OPP(roll type)

2).Label Specification: According to customers demands

3).Labeling Way: Straight-line hot melt glue labeling
Hot glue labeling machine.jpg
1.3 Description of  equipment
1). Adopt wheel labeling way;
2). Label transmit via label wheel,  run along the guide rail and operate the labeling work;
3). When the label through the appointed wheel, the sensor will  automatically detect I-Mark;
4).Once confirms the electronic eye position, the demodulator will automatically adjustment the speed of wheel, and then appoints the label cutting position accurately.
5).The label through the wheels and then enter into the cutting part to carry out the label cutting work, the label cut will be send to the vacuum-grip cylinder.
6). The containers which is transmitted by conveyor belt will be arranged properly via star wheel, then, the label which has been painted with glue will proceed the first labeling in the roller area, last, rely on the synchronous belt to proceed the last labeling operation.

1.4 Device Description
1).Control: Motion Controller, Frequency Converter.
2). Safety device
a. The drive part is equipped with overloaded protection device.
b. Abnormal state end device for star wheel
c. None bottle supply decor
d. Bottle Overload decor


Hot glue labeling machine.jpg

Hot glue labeling machine.jpg
