Complete Fruit Juice Production Line / Juice Packing Machine /bottle Filling Machine

King Machine is one of the largest complete fruit juice production line / juice packing machine /bottle filling machine manufacturers and suppliers in China. We have introduced many professional operators and technicians as well as advanced devices into our factory in order to provide you with...

Product Details

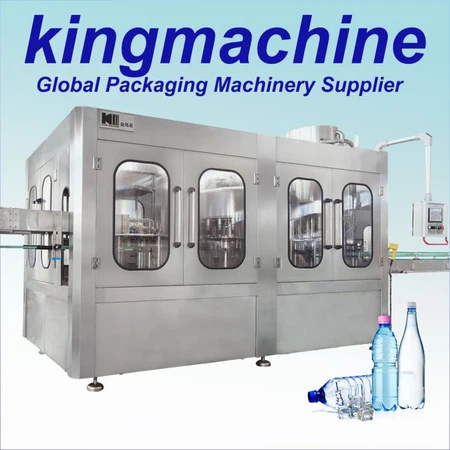

Complete fruit juice  production line /  juice packing machine /bottle filling machine

Products Introduction:

Usage of Complete fruit juice processing line / hot drink production line /  juice filling machine:

The plant  is mainly used in hot filling and sealing of green tea,black tea,wulong tea and fruit juice drink. This machine integrates washing,filling and capping together. The design is scientific and resonable. Its apperance is beautiful. Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine

Fetures of Complete fruit juice processing line / hot drink production line /  juice filling machine:

1. The machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine.

2. It is automatic in total process and suitable for PET bottled juice tea drink which can resistant high temperature.

3. It also can be used for mineral water, pure water and many other no gas containing drinks.

4. It makes by high quality SUS304 and key parts are precision machined by NC tool.

5. The total machine adopts advanced photoelectric detection technology to detect each part's operation status, no bottle no filling, no bottle no capping, automatic easy operation.

6. Using the wind sent access, with clamp hanging the bottle neck which can keep the bottle shape high-speed.

7. Washing bottle mouth with special designed washing manipulator, clip in the bottle neck, stable avoid secondary pollution.

8. Filling uses lifting valve, adopts micro pressure filling principle to ensure correct filling.

9. Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.

10. Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan Mitsubishi, France Schneider, Omron.

Technical parameters

model

RCGF

RCGF

RCGF

RCGF

RCGF

18-18-6

24-24-8

32-32-10

40-40-12

50-50-15

production capacity(500ml)(b/h)

4000-6000

6000-10000

10000-15000

15000-20000

20000-24000

filling precision

±2mm(liquid level)

polyester bottle standerd(mm)

bottle diameter: φ50-φ100;height:150-310

suitable cap shape

plastic screw cap

water pressure of washing bottle(Mpa)

0.2-0.25(Mpa)

gas consumption(m3/min)

0.1

0.4

0.5

0.5

0.6

power(kw)

4.4

5.2

6.2

7.8

10

weight(kg)

2800

4500

6000

7000

9500

dimensions(L*W*H)(mm)

2360*1830*2250

2900*2200*2250

3880*2200*2250

3700*3000*2350

4500*3500*2400

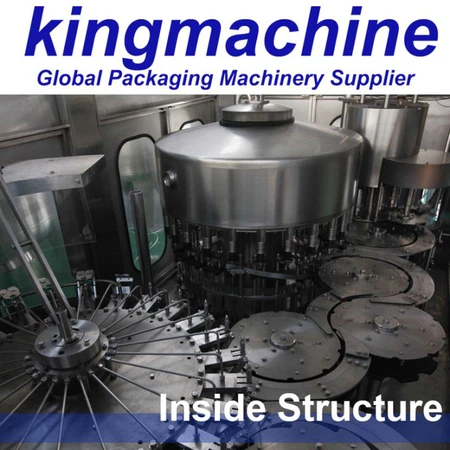

Main components: (See Drawing 1)

1)  driving system;

2)  bottle-loading system;

3)  bottle-rinsing system;

4)  handing-over system between rinsing and filling;

5)  filling system;

6)  handing-over system between filling and capping;

7)  capping system;

8)  cap-unscrambling system;

9)  bottle-unloading system;

10)  frame;

11)  electrical system.

Photos


Washing part:




Filling part:


Capping part:


Company profile:


Zhangjiagang King Machine Co. Ltd,is a direct manufacturer and exporter

specialized in water treatment plants, beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.

Our factory was established in the year of 1995, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.

King Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply.
