Automatic Sodium Hypocritical Filling Machine

Automatic Sodium Hypocritical Filling Machine

Type: ZGP-8G

Product Details


1 Brief Introduction

1.1 Suitable material: Bleach, acid liquid, 84 disinfectant, gel water,

toilet cleaner, especially used in the liquid filling of strongly corrosion liquid and cosmetics which can’t touch the metal.

1.2 Contact liquid parts are use anticorrosive non-metallic material and

with diving function.

1.3 This Vertical filler is a high-tech filling equipment integrating on the

PLC microcomputer programmable control, and photo electricity transduction pneumatic action.

1.4 The machine suits for the filling of different sizes of vessel may

change the filling sizes within a few minutes. Short filling circle, high production capacity.

1.5 User may choose the filling volume and decide the filling heads per

own production capacity.

1.6 The precision time of the pneumatic valve filling may set to 0.01

second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.

1.7 Each filling-head’s measurement may be individually adjusted to

realize the same filling measurement.

1.8 The machine set such function: having counting program of

bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.

1.9 More or less of the filling volume, may initially adjust to the needed

filling volume, then micro adjust, can get the ideal filling measurement precision.

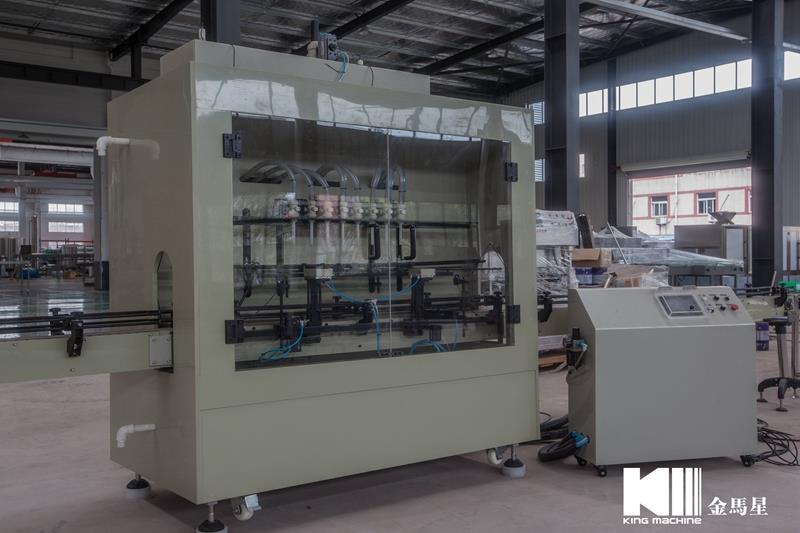

Automatic Sodium Hypocritical filling machine.jpg


2 Technical Parameter

No.

Item

Technical Data

1

Capacity

600BPH for 5000ml bottles

2

Filling Range

50ml-5000ml

3

Accuracy

±1%

4

Power

1KW

5

Voltage

220V 50HZ

6

Weight

750KG

7

Dimension

2200*1100*2300MM
