Monoblock RO Purified Drinking Water Bottle Filling Machine

Monoblock RO Purified Drinking Water Bottle Filling Machine

This CGF Washing-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.

Product Details

Monoblock Ro purified drinking water bottle filling machine

Products Introduction:
Water filling line  :
This CGF Washing-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in- 1


Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON.
Technical parameters:

Model

Washing heads

Filling
 heads

Capping
heads

Capacity(b/h) 500ml

Motor power
(KW)

Overall dimension
(mm)

CFG14-12-5

14

12

5

2000-

4000

1.5KW

2100x1400

x2500

CFG18-18-6

18

18

6

5000-

7000

2.2KW

2460x1720

x2650

CFG24-24-8

24

24

8

8000-

12000

3KW

3100x2100

x2650

CFG32-32-10

32

32

10

12000-

15000

4KW

3500x2500

x2650

CFG40-40-10

40

40

10

16000-

20000

7.5KW

4600x1800

x2650

CFG48-48-12

48

48

12

20000-

24000

9.5KW

5200x4500

x3400

CFG60-60-15

60

60

15

25000-

30000

12KW

6500x4500

x3400

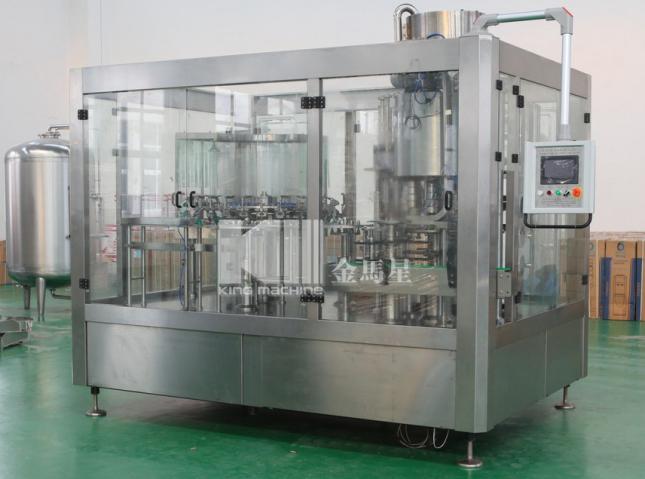

Photos Of Machine:

Washing partFilling aprt Capping Part

Flow chart (water filling line ):

A)Bottle production line PET Resin --Injection moulding machine -Botlte blowing machine --PET bottle
B)Water treatment system Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis -UV sterilizer-Ozone generator--Finished water tank
C)Filling&Packing part Bottle unscrambler--Air conveyor--Washing,filling,capping 3in1 machine--Light checker--Blow dryer--Dater printer--Lableing machine --Packing machine -Stock

Certification :



installation, debug

After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.

training

Our company offer technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

Company introduction:
Zhangjiagang king machine Co., Ltd .was founded at 1995,and starting with beverage machinery.It is located at Zhangjiagang city ,We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry .our Main products including: Pure/mineral water and purified water producing line. carbonated beverage producing line. 3gallons& 5gallons producing line. Flat and tube UHT device, and CIP system.All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
