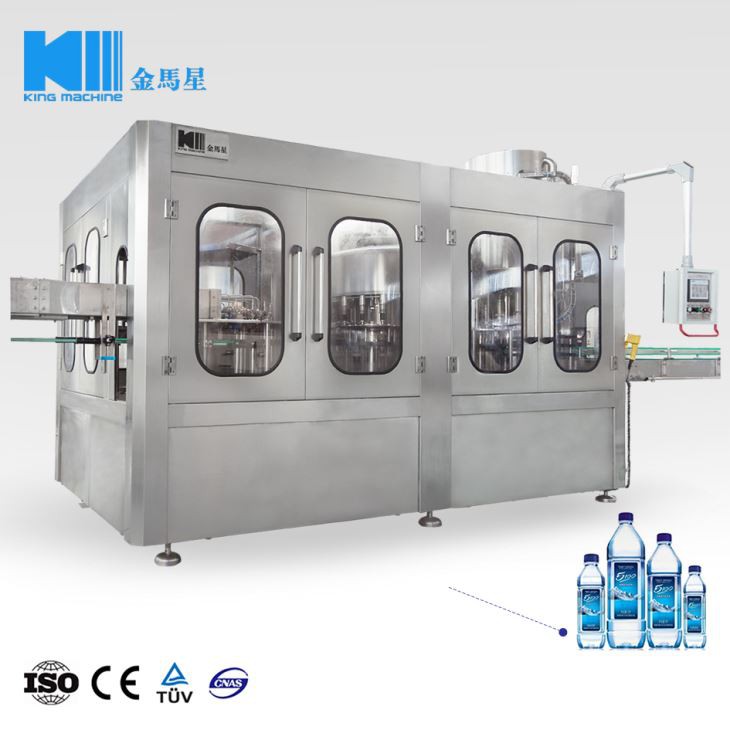

Water Purification And Bottling Machine

Water Purification And Bottling Machine

Technical parameter: Characteristic: 1.Intelligent contact screen, human design, easy operation. 2.High speed filling valve, avoiding drop leaking, accurate filling quantity. 3.Program logic controller(PLC), easy for changing size or modifying parameters. 4.Pneumatic elements are all famous...

Product Details

Technical parameter:

Containers and specifications
Project Name: Full Automatic Complete Mineral Water 2000-20000bph Production LinePH≥4.6drinking water
materialshapeFilling volume(ml)Filling level(mm)Neck type
PET BottleSquare or Round Bottle100-2000mlDistance from bottle neck
According request
As request
Adjustable specifications of the bottle typeMiddle Mould Base: Bottle diameter ≤105mm  Bottle Height≤335mm

Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label & Control ModePackaging systemPalletizing system
Hot Melt Roll-Fed
PVC Shrink Label
Full Label/ Half Label
Manual  /  Automatic
Packing systemMin, Spec.Manual
Low position gantry palletizer
Robot Palletizer
High position gantry palletizer
Single Arm Palletizer
Manual Palletizer

Manual
Film shrinker
Wrap Around packer
 Robert Packing Machine
1*2
2*3
3*4
4*6
3*5

User Ambient Conditions:Temperature:10~40ºC;Humidity:No dew
User Electrical Supply SpecificationVoltage:380V±5%, 3phase; Frequency:50HZ±1%


ModelWashing headsFilling
 heads
Capping
heads
Capacity(b/h)
500ml
Motor power
(KW)
Overall dimension (mm)
CGF14-12-5141252000-40001.5KW2100x1400x2500
CGF18-18-6181865000-70002.2KW2460x1720x2650
CGF24-24-8242488000-120003KW3100x2100x2650
CGF32-32-1032321012000-150004KW3500x2500x2650
CGF40-40-1040401016000-200007.5KW4600x1800x2650
CGF48-48-1248481220000-240009.5KW5200x4500x3400
CGF60-60-1560601525000-3000012KW6500x4500x3400

Characteristic:
1.Intelligent contact screen, human design, easy operation.
2.High speed filling valve, avoiding drop leaking, accurate filling quantity.
3.Program logic controller(PLC), easy for changing size or modifying parameters.
4.Pneumatic elements are all famous brand, stability and reliability.
5.Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
8.Pneumatic executive control valve, high efficiency and safety.
9.Close positioning design, easy governing, suitable for packing of all sizes of bottles.
10. Machine is designed according to requirements of buyer's.

11. Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way

12.Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter.
