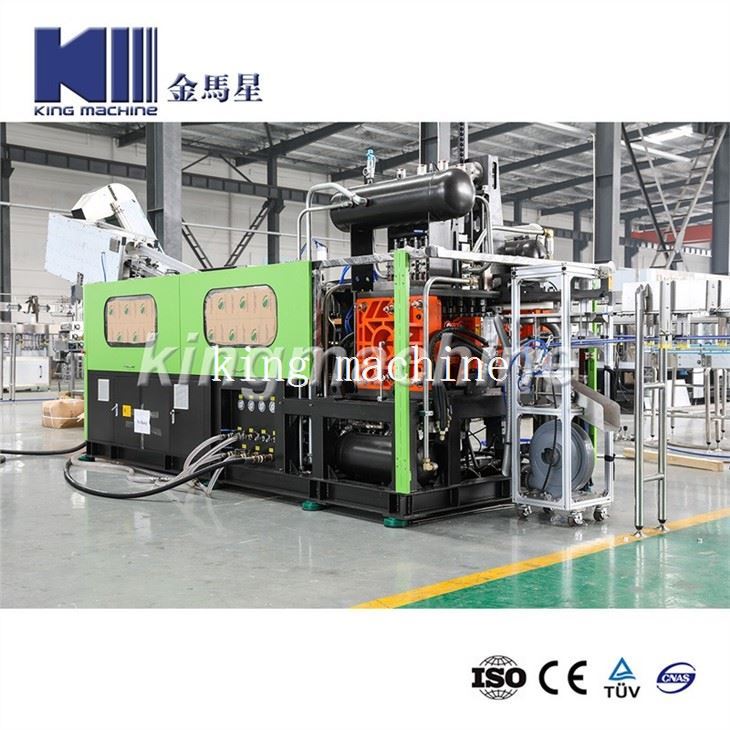

Automatic Auto Plastic Pet Bottle Blowing Molding Machine
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Product Introduction
King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of automatic auto plastic pet bottle blowing molding machine in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.
Automatic Auto Plastic Pet Bottle Blowing Molding Machine
Machine Features:
1. Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle, cosmetic bottle etc. Reasonable design, full automatic control, preform automatially feeded, save power and labor.
2. The mechanical part has compact and energy saving design.
3. Machine has fault alarm function and diagnostic system to allow easy maintenance.
4. The mould positioning installation makes it possible for operators to change the mould easily within 30 minutes.
5. The machine can be controlled through touch screen and running status is shown on it.
6. Heating by high-quality infrared lamp,high penetration, to make sure each preform be heated uniformly and stably. The width and height of the reflector can be adjusted, which can be suitable for heating preforms with different wall thicknesses.
Main Parameters:
| Item | KM-A6 | KML-A4 | KM-A2 |
| Theoretical Output | 6000pcs/h | 4000pcs/h | 2200pcs/h |
| Max Container Volume | 2L | 2L | 2L |
| Max Neck Diameter | 45mm | 45mm | 50mm |
| Max Container Diameter | 100mm | 100mm | 120mm |
| Max Container Height | 340mm | 340mm | 340mm |
| Number of Cavity | 6 Cavity | 4 Cavity | 2 Cavity |
| Total Power | 45Kw | 35Kw | 25Kw |
| Real Using Power | 30Kw | 20Kw | 12Kw |
| Low Pressure Air Consumption | 1.6m³/min | 1.6m³/min | 1.2m³/min |
| High Pressure Air Consumption | 3.6m³/min | 2.4m³/min | 1.6m³/min |
| Feeding Machine Dimension | 2.0*1.2*2.2m | 1.8*1.0*2.0m | 1.8*1.0*2.0m |
| Feeding Machine Weight | 300Kg | 240Kg | 240Kg |
| Machine Dimension | 4.2*1.8*2.0m | 3.6*1.8*2.0m | 3.2*1.8*2.0m |
| Machine Weight | 3800Kg | 2200Kg | 1400Kg |
Aaron Wang Sales Manager atKing Machine |
 |
Phone/whatsapp/wechat:+86-15262329005 Email:aaron@king-machine.com Website: https://www.liquidpackingmahines.com/ ADD:NO.22 East Seven Road Donglai Town, Zhangjiagang City, Jiangsu Province, China |
