Rotary Jam Filling Line
BRIEF INTRODUCTION
OF WATER PRODUCTION LINE
Water is a multifaceted product: natural spring water, purified water, carbonated water, flavored water... What process can be used to prevent bromate formation? How to deploy mechanical filling valves to keep water crystal clear and contaminant free? How to achieve the maximum benefit with speed, accuracy and light weight bottles? King Machine, the expert in liquid product filling, will always provide you with the best solution for your products.
KEY
FEATURES
OF WATER LINE
1.Round bottle,Contact-type volumetric filling method
2.Vacuum suction after filling to avoid dripping
3.S/S 304 frame, top plate
4.S/S 304 frame, top plate
5.The whole productio filling line accuracy is more or less than 1%.
6.Sterile product connection interface provided by customer
3D Virtual Show
CAD Configuration
Water Treatment
Sauce processing system
Bottle Blowing Machine / Bottle Unscrambler
Air Conveyor + Flat Conveyor
Rotary Type 3 in 1 Filling Machine
Light Checking
Cooler & Shower
Labeling Machine
Date Code Printer
Water Treatment
Sauce processing system
Bottle Unscrambler
Flat Conveyor
Rotary Type 3 in 1 Filling Machine
Light Checking
Cooler & Shower
Labeling Machine
Date Code Printer
Bottle Packaging Machine
Layout - Rotary Jam Filling Machine

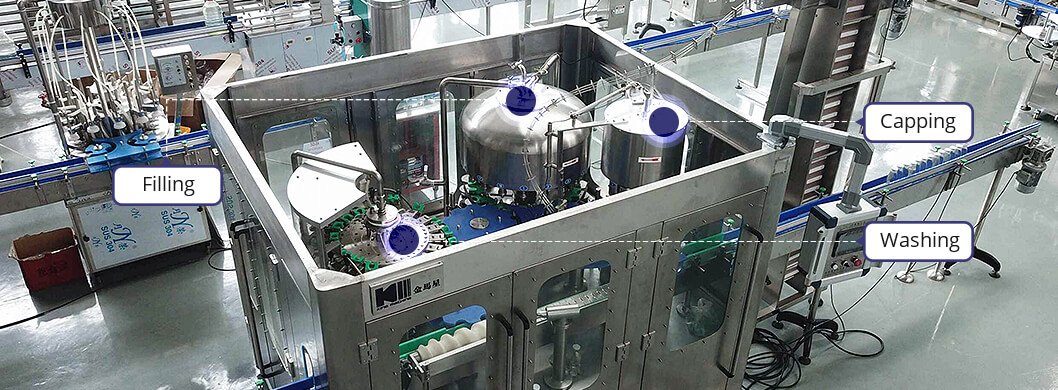

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
WASHING HEADS
DESCRIPTION
- Into bottle way is air conveyor direct connection with Bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
FILLING HEADS
DESCRIPTION
- Round bottle, contact-type volumetric filling method
- Vacuum suction after filing to avoid dripping
- S/S 304 frame, top plate
- Main electronic components, famous brand, touch screen, PLC by Mitsubishi
- Sterile product connection interface provided by customer
CAPPING HEADS
DESCRIPTION
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2％
AIR CONVEYOR
DESCRIPTION
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
FLAT CONVEYOR
DESCRIPTION
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
1 Semi-auto Blowing System
2 Full-auto Blowing System
3 Bottle Unscrambler
Picture for full automatic blow molding machine , is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
| - Mainly for cooling and sterilization - The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation - Nozzles are manufactured using U.S. technology and spray water evenly - Conveyor belt adopts Rexnor technology, flat surface with small wear - Smooth and reliable operation with low energy consumption |
1 Heat shrink sleeve labeling machine
2 OPP Hot melt labeling machine
3 PVC/Paper label stick labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
1 PE film shrink wrapping machine
2 Half-tray shrink wrapping machine
3 Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
AUXILIARY EQUIPMENT
OF LAYOUT - ROTARY JAM PRODUCTION LINE
Water Treatment System
Raw water tank + Raw water pump
Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
Reverse Osmosis (one level)
UV sterilizer
Finished water tank + Pure water pump
Stainless steel high pressure film shell
All kinds of capacity indicator, pressure indicator, electricity magnetic valve,
balance device and pipe valve system
Online type pressure auto self-protection device
Online type electricity indicator (with stable compensation)
System safe protecting and alarm system
System frame
