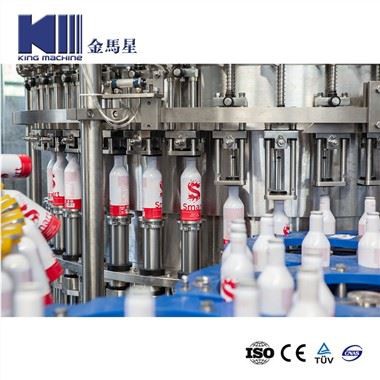

Carbonated Filling Line

Custom bottles are delivered through the air duct and then transported to the three-in-one machine through the bottle wheel. The bottle holder is mounted on the rotary disk of the bottle washer, and the bottle holder clamps the bottle mouth and turns 180° along a guide rail to make the bottle mouth downward. In the specific area of the bottle washer, the flushing nozzle nozzle sprays the flushing water and rinses the inner wall of the bottle. After the bottle is rinsed and drained, the bottle is clamped and then turned over 180° along the guide rail to make the bottle mouth upward. The washed bottle is exported by the bottle washer and sent to the filling machine by the bottle wheel.
The bottle entering the Carbonated Drink Filling Machine is jammed by the bottleneck and lifts the bottle under the action of the cam, then the filling valve is opened by the mouth of the bottle. Filling is done by gravity filling. After the filling valve is opened, the material is filled through the filling valve. After the filling is completed, the bottle mouth is lowered away from the filling valve, and the bottle enters the capping machine through the card bottleneck transition dial.
The anti-rotation knife on the capping machine catches the bottle neck and keeps the bottle upright and prevents rotation. The capping head keeps revolving and self-rotating on the capping machine, and realizes the capping, capping, capping and capping action under the action of the cam, and completes the whole capping process. The finished bottle is transferred from the capping machine to the bottle delivery chain through the bottle puller, and the three-in-one machine is transported by the conveyor chain.
We are one of the most professional carbonated drink filling machine manufacturers and suppliers in China. Welcome to wholesale high quality carbonated drink filling machine for sale at cheap price from our factory.

King Machine Co., Ltd. is one of the most professional carbonated filling line manufacturers and suppliers in China, featured by quality products and good price. Please rest assured to buy high-grade carbonated filling line for sale here from our factory.

Auto CO2 Gas Drink Filling Machine, Automatic Soda Packing Machine, Beverage Mixing Machine
