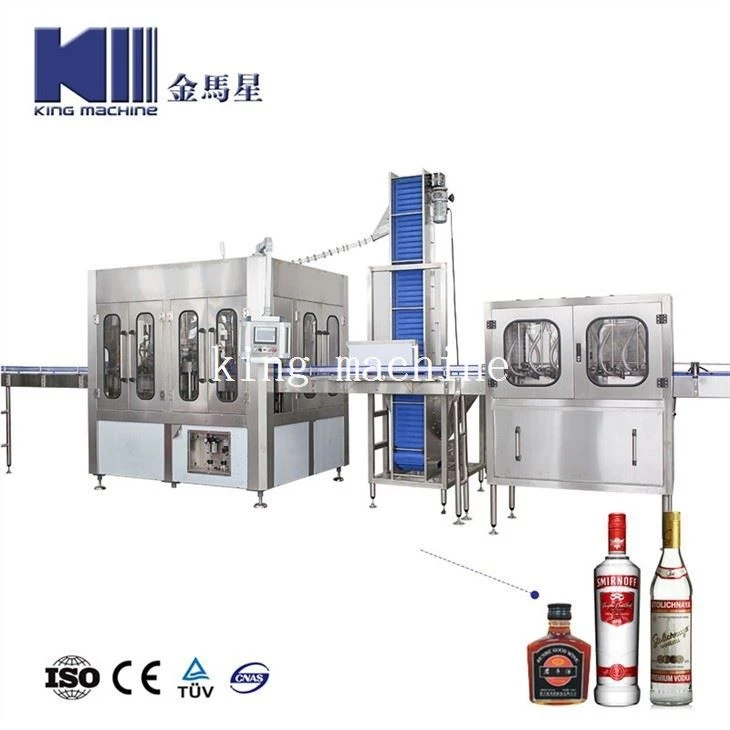

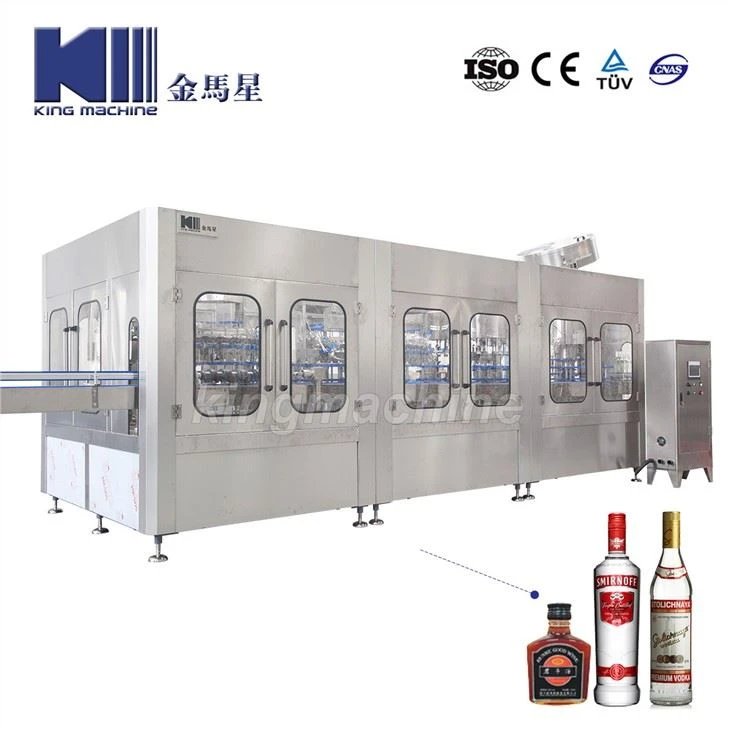

Full Automatic Glass Bottle Alcohol Drink Bottling Sealing Labeling Packing Machine

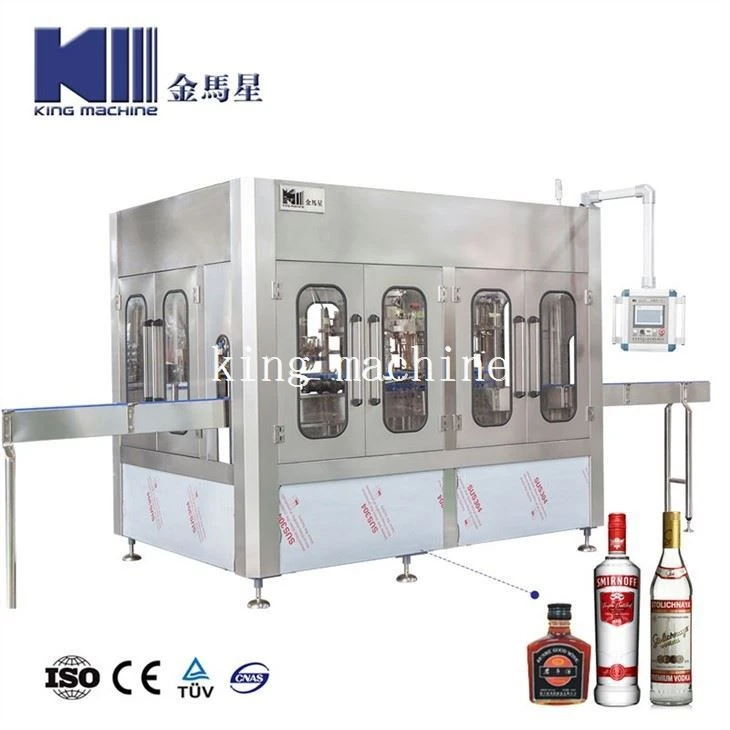

The Alcohol Bottling Machine is a fully automatic liquid dosing machine.
It is filled by measuring cup and quantitative method with high quantitative precision.
The average error of 500 ml is ±1 ml.
The storage and filling surface control mechanism is a floating cylinder type, which has a simple structure and reliable operation.
This machine is suitable for liquid filling of different bottle types, such as wine bottles, beverages, seasonings, liquid medicines and other liquid glass bottles without carbon dioxide gas.
Product Introduction
King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of full automatic glass bottle alcohol drink bottling sealing labeling packing machine in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.
Full Automatic Glass Bottle Alcohol Drink Bottling Sealing Labeling Packing Machine
1- PLC and Touch screen full automatic control. Easy for operate
2- Fastly different bottle size replacement
3- Concise structure, reliable and durable, easy to maintain.
DETAILED IMAGES
| Washing part composes of bottle washing clamp, upper rotary plate, guide rail, water distributing plate, shield, water spraying device, water tray etc. Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding starwheel, which can clamp the bottle neck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water, then overturn for 180°, bottle mouth becomes upwards and then conveyed with the starwheel; shield can prevent sprinkling of cleaning water; water distributing plate can deliver the cleaning water from the still parts to the rotary parts. |

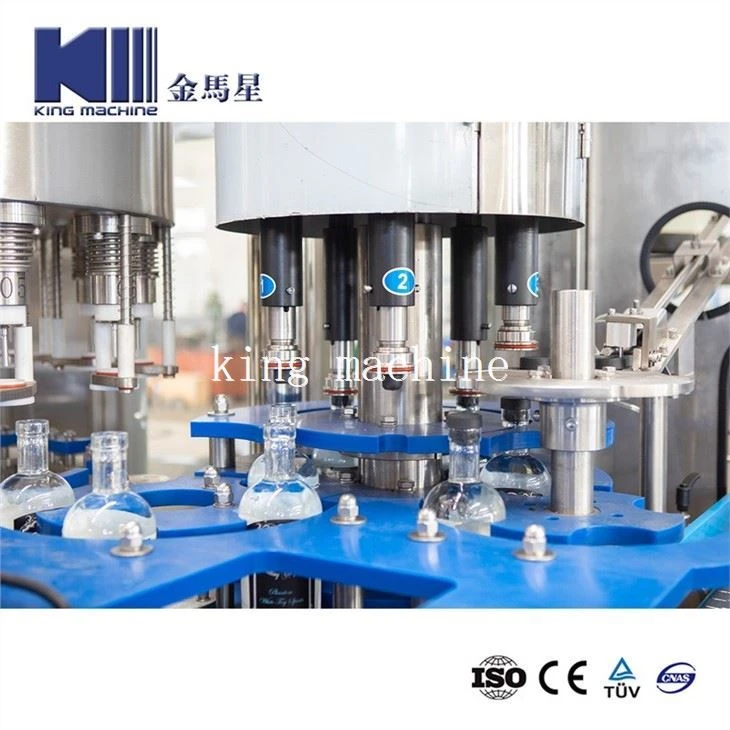

| Filling part mainly composes of bottling barrel, bottling valve, guide rail, lifting device, bottle clamping lift device etc. Bottle is conveyed to the bottling machine with the clamp plate of starwheel drive IV, bottling bottle clamp plate supports the bottle neck and rotates together with the bottling, and ascend along the guide rail and then open the bottling valve for bottling, after finishing bottling, it descend and loose the bottling valve, bottling valve may automatically close. Bottle is discharged from the bottling machine along the clamp plate of starwheel drive V. |

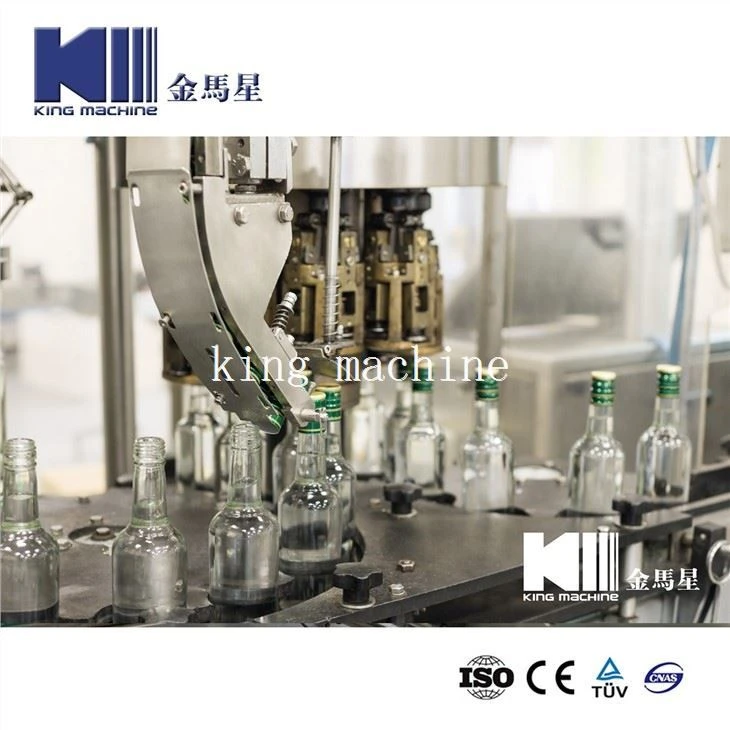

| Capping part composes of cap separating mechanism, capping machine and cap arranging mechanism. Bottle is conveyed into the capping machine with 3# starwheel and then is clamped with the bottle clamping block; the cap is arranged by the cap |
Auxiliary Equipment
RO WATER TREATMENT SYSTEM
•Stainless steel high pressure film shell
•All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
•Online type pressure auto self-protection device
•Online type electricity indicator (with stable compensation)
•System safe protecting and alarm system •Stainless steel frame
Choose the above equipment according to your Raw water report.
