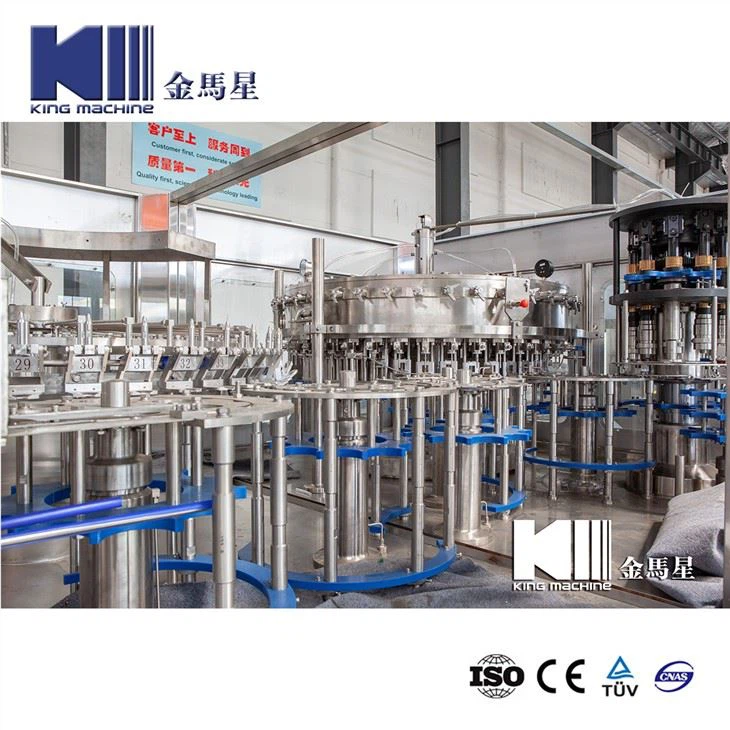

Automatic Glass Bottled Beer Filling Craft Brew Bottling Plant Machine
This series of equipment is used in the production of gas-containing beverages, such as Coca-Cola, Sprite, Fanta etc. This machine is washing, filling and capping 3-in-1,This machine is suitable for all kinds of bottle types. It adopts suspension air conveyor. When change the bottle,It only needs to adjust the conveying width, which is more efficient and labor-saving. This machine adopts isobaric filling type, which is faster and more stable. The machine adopts advanced PLC programming control system, and the electrical components adopt internationally renowned brands. The design of the whole machine is scientific and reasonable, with high output and low failure rate.
Product Introduction
King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of automatic glass bottled beer filling craft brew bottling plant machine in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.
Automatic Glass Bottled Beer Filling Craft Brew Bottling Plant Machine
Working principle
When bottles are sent to the machine by conveyor continuously, they firstly are deliveried to the receiving wheel
by air-slide conveyor and then to washing part.
The bottle clamps hold the bottles and trun over 180°C to wash, then return back to their original position after
enough washing and drying. The bottles are sent to the middle thumb wheel 1 and to the filling part to be filled,
then moved by middle thumb wheel 2 and reach to capping part to be capped, at the same time, cap trimmer
sends caps to the top of the bottles and capper screws caps.
Bottles are sent to the conveyor chain by the out stirring wheel to next working position.
Characteristics
1) Monoblock structure, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
2) Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
3) High speed and large flow filling valve assures the high filling speed and exact fluid level.
4) Parts contact with the liquid are all of excellent stainless steel or food level plastic.The electric system is of international brand and achieves the national food sanitary standard.
5) The bottle-out starwheel is of screwdown shape.When bottle size is changed, there is no need to adjust the transferring chain's height.
Technical Specifications
| Complete solution of carbonated drink production line 2000BPH - 24000BPH | PH≥4.6 Carbonated drink | |||
| Mineral | Shape | Filling volume | Filling level (mm) | Neck type |
| PET bottle | Round or square bottle | 100-2000ml | Distance from bottle neck | Basing on the real sample |
| Bottle type | Diameter ≤ 105mm; height ≤ 335mm | |||
| Changeovers will be needed if having different bottle; Regarding the bottle in square shape, the bottle separating system will be needed; | ||||
| Labeling manner | Packing system | Palletizing system | ||
| Package | Format | |||
| Hot glue OPP PVC shrink label Full label / Half label Manual type / Auto type | Manual Film shrinker Wrap around Packer Robert packing Machine | 1*2 2*3 3*4 4*6 3*5 | Manual Low position gantry Palletizer Robert Palletizer High position gantry Palletizer Single arm palletizer Manual palletizer | |
| Working environment | Temperature: 10-40 degrees Celsius; Humidity: No dew | |||
| Power supply | 380V 3phase 50HZ / Customize | |||
