Can Beer Filling Packing Line

King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of can beer filling packing line in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.

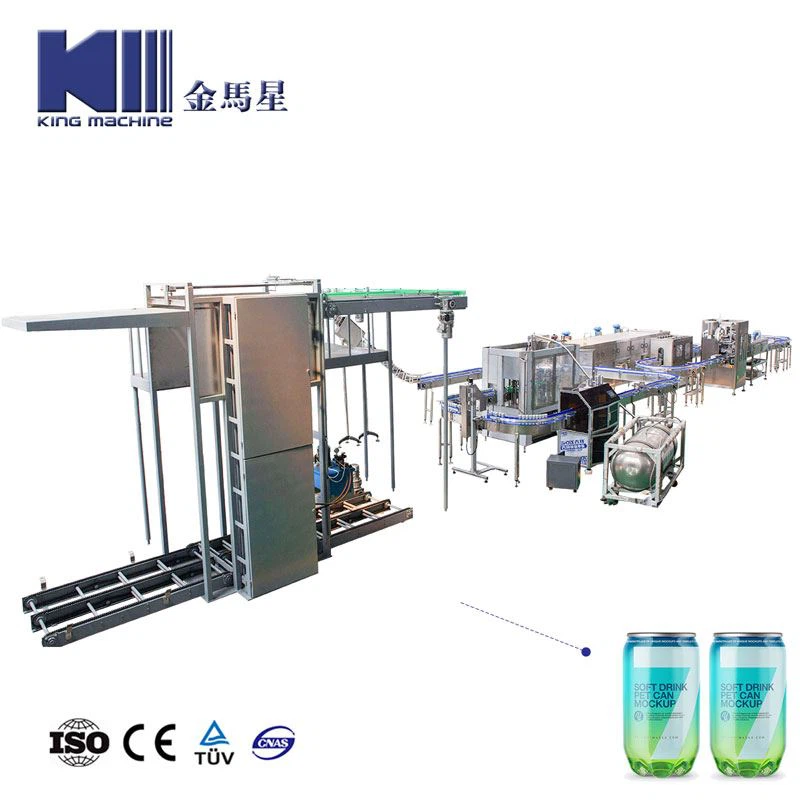

1, Full automatic Empty can depalletizer

Depalletizer size height: 2300mm

Suitable pallet size:1100*1400mm

Suitable can size: φ50-φ153mm，height: 50-270mm

Suitable : can glass bottle

Overall size: length 10500mm Width 3000mm Height: 3500mm

2, Empty can rinsing machine

it automatically jets water and sterilizes the inner and surface of the can. All the materials are made of stainless steel.

Main technical parameters:

Type: XD-300

Production capacity: 0~180 cans/min

used area: for each can size

Weight: 100kg

Dimension: 4000 × 500 × 2300mm

3. Automatic Can inverter machine

It reverses the cans automatically to spray bar-code and incase the cans.

Production capacity:  0~150 cans/min

Using range:  Can diameter: φ65mm Can height: H122mm

Weight:  50kg

Dimension: (length×width×height) 1000×300×300mm

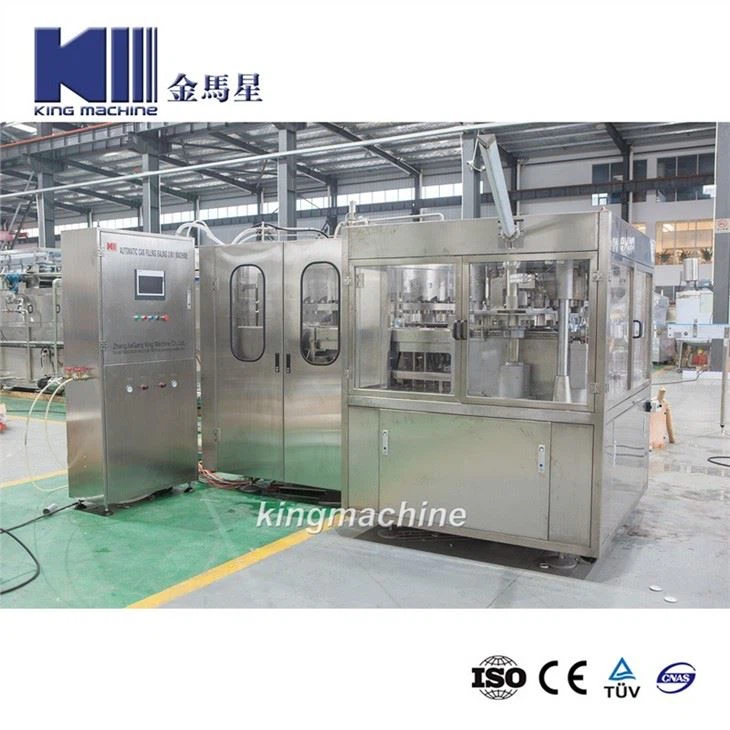

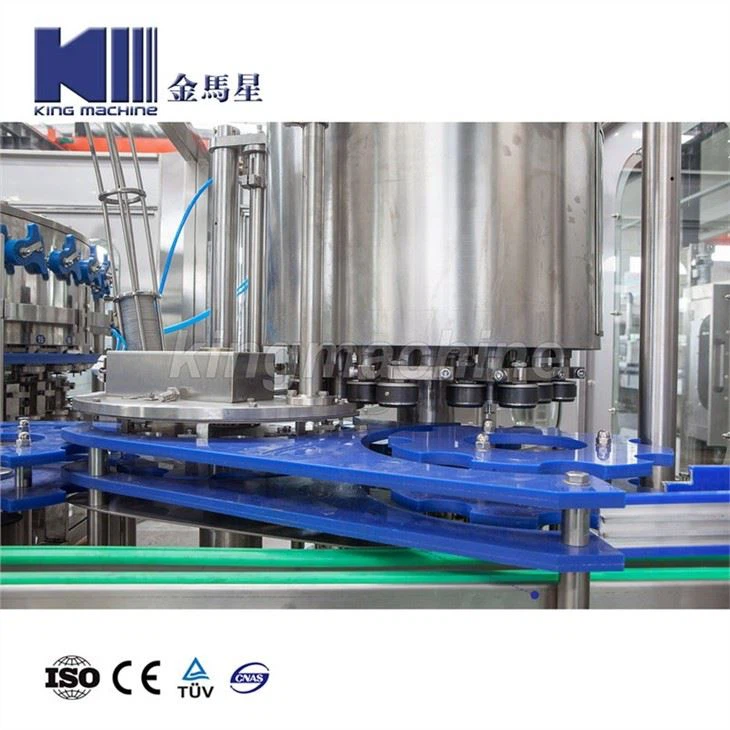

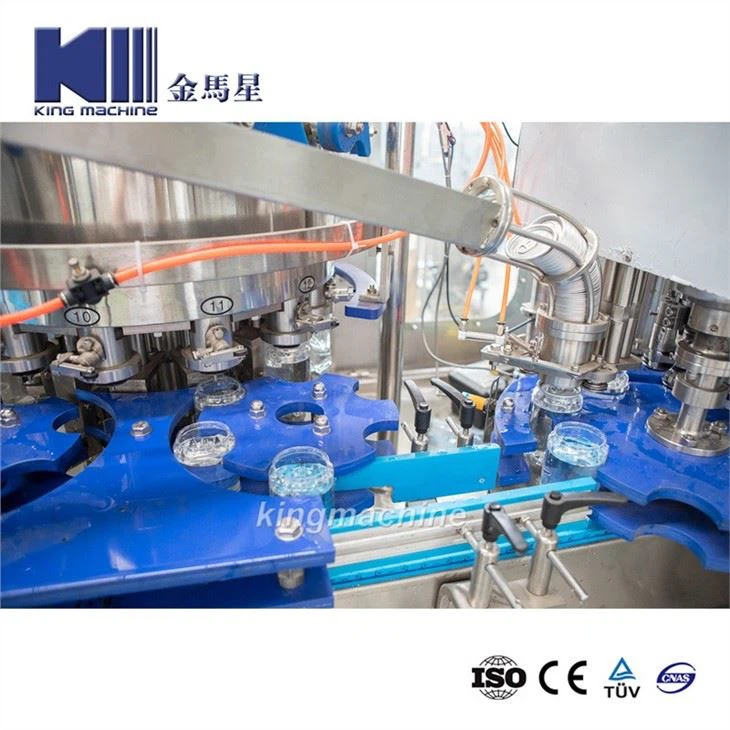

4.Filling system

Filling product：Beer

Filling Temperature： Cold Filling

Volume ： Customized

Cap ：Aluminum 　　

Label: color printed on can

Can rinsing type: pure water rinsing

Can loading style: manual feeding

Production inspection：Manual

Filling type: whole machine bottom lifting up, and normal pressure filling

Filling precision: liquid controlled inside ±3mm

Transfer type: Empty Bottle Air conveyor

Filled bottle: flat conveyor

Environment：Temperature 80℃

Humidity：≤95％

Power ：380V，50Hz，3phases

l  Capacity ：8000CANS/HOUR 750ml

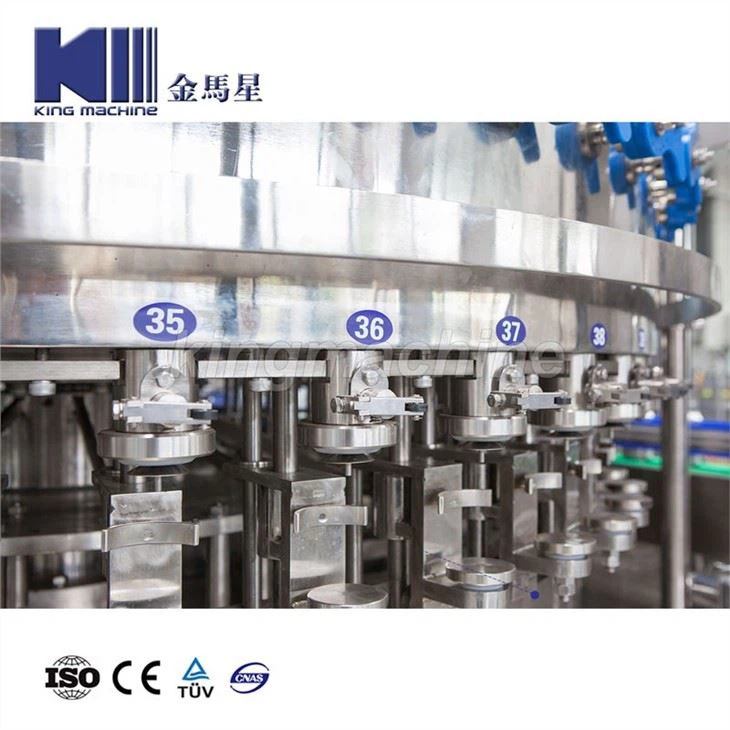

l  Filling heads：32

l  Sealing head：8

l  Max Filling pressure ：0.5Mpa

l  Filling temperature：≤92℃

l  Power ：4.2KW

l  Overall size：2550*1400*2500mm

l  Weight ：4000kg

5. Nitrogen dosing machine and nitrogen tank

One-button automatic quick service（Quick Service)

1.Automatic cleaning of nitrogen accumulated moisture inside the fuselage

2. Accelerated nitrogen injection solution cream first sweep accelerate work

3.CIP/SIP Nitrogen positive pressure treatments.

Preventing outside moist hot air into the machine body

Internal solution frost hinder operation of the device

Model：Cryodoser S300 and Siemens S7200

Use: For beverage production line

Principle：Inject liquid nitrogen into the tank，liquid nitrogen will gasify after capping. Nitrogen gas is equal to 700 times the volume of liquid nitrogen .This will add pressure to bottles and avoid the occurrence of plaque product bottle phenomenon.

Weight:160KG

Pulse injection modes can reduce pressure and the cost of liquid nitrogen, decrease operating costs.

Vacuum insulation - Low rate of evaporation

（NER）0.15L/H, liquid nitrogen machine can decrease operating costs.

Nozzle Blanketing canprevent outside air into spray chamber internal frost.

Liquid nitrogen level positioning control, Horizontal pressure stable, can improve the liquid nitrogen dose accuracy,

and at the same time reduce liquid nitrogen flash loss.

Liquid level by dynamic positioning control system, there will be no problem of the electronic level control system and electrically operated valve.

Liquid gas separator, to ensure the super cold of the liquid nitrogen, improve the quality of pure liquid, help to liquid nitrogen dose accurately.

Buffer nitrogen filled function, effectively prevent the liquid nitrogen rebound spill, liquid nitrogen pick up quantity is stable, also ensure that the tank pressure stable. Equipped with a filter 10um,to remove particle pollution.

6.Liquid level check machine

It matches on the can line for checking the level of beverage, if the filling quantity do not reach the standard which will be kick out. From that it can keep the product safety.

Main technical parameters:

1. Type: ZJZ200

2. Production capacity:  0~150 cans/min

3. Using range:  Can diameter: φ52.5~φ99mm

            Can height: H65~H166mm

4. Power: 150W

5. Weight:  60kg

6. Dimension: (length×width×height) 530×150×350mm

8.Shower Warmer

So after the filling machine, there should be a shower warmer to warm the bottle to the room temperature. itis usually a tunnel type shower. It cools the bottle through spraying cold water to the bottle. There are usually 3 warming zones( more zones are ok). After cooling by section, the bottle’s temperature could achieve 30-35 ℃. Main components of shower cooler are frame, transferring chain, transferring system, water storage tank, recycle pump, showering device, cooling device and pipes.

9.Blow dryer

This machine installed after the filling machine, In order to dry the bottles which outside with some water drop, This machine is used to removing the water outside the bottle surface, the blowing capacity can be adjusted through the button.

Model: HGJ

Dimension : 1400*900*1500mm

Material: stainless steel 304

With 2sets of air blower and position can be adjusted, also air flux can be adjusted

10.Code sprayer

Model:VJ-1210

Line Speed Capability:

Can print 1 to 3 lines of print at speeds of up to 533 ft./min. (162.5 m/min.) (10 characters per inch, single line of print)

Font Matrix Configuration:

Single-line: 5x5, 5x7, 7x9, 11x16, 17x24

Twin-line: 5x5, 5x7, 7x9

Tri-line: 5x5, 5x7

Nominal Character Height:

Selectable from 0.079” (2 mm) to 0.279” (8.5 mm), depending on font

Throw Distance:

Optimal: 0.472” (12 mm)

Range: 0.197” (5 mm) to 0.591” (15 mm)

Keyboard:

Membrane style with tactile feedback, including 72 numeric, alphabetic, and special function keys. PC-style layout to approximate international PC convention.

Display:

320x240 Bright blue backlit 5.7” LCD display. WYSIWYG onscreen message editing

Custom Logo/Graphics:

Can be created by individual user on printer or PC with optional Videojet

Logo Creator software
