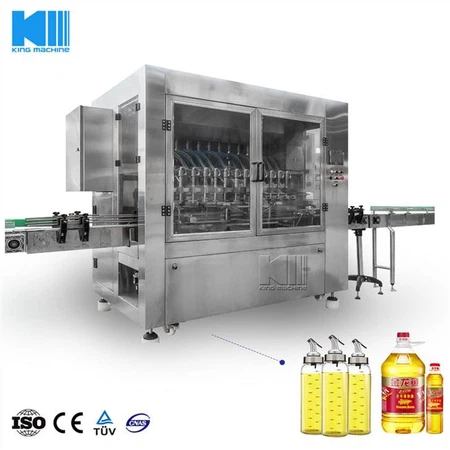

Linear Olive Oil Coconut Oil Filling Machine

Linear Olive Oil Coconut Oil Filling Machine

Name: China Linear Olive Oil Coconut Oil Filling Machine Manufacturers Suppliers Factory - King Machine
Brand: King Machine
SKU: 166958207

This type of machine can be used for fixed amount small package filling,straight line type filling, metical, electric, apparatus control of all sorts of viscous and no viscous,erosive liquid,such as plant oil chemical,liquid,daily chemical industry.It is rather simple and rapid to change items,the design is quite distinct,the property is Very advantageous,its appearance corresponds to international concept for mechanical equipment.

Send Inquiry

Product Introduction

King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of linear olive oil coconut oil filling machine in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.

Linear Olive Oil Coconut Oil Filling Machine

Product Introduction

This filling machine controlled by servo piston, and can be connected with filling line (capping machine,
labeling machine and even intelligent packing system), and mainly suitable for viscosity liquids.
Adopts imported high quality electrical components such as Delta PLC or Siemens photoelectric sensor,
Delta touch screen and super thick stainless steel frame to make machine runs stably and smoothly and durable.

Technical Parameter

Model	Unit	GP5600
Nozzle Number	pcs	4	6	8	10	12
Production capacity	bottle/h	720-1200	1200-1800	1400-2400	1800-3000	1800-3600
Filling Accuracy	%	≤±0.5%
Voltage	V	3 phase AC380V ( or customized )
Power	kw	2.5	2.5	2.8	3.5	4
Air pressure	mpa	0.55-0.8
Air consumption	M3/min	0.8	1	1.2	1.2	1.8

Application

It is widely applied to oil industry, such as edible oil, motor oil, lubricate oil, and etc.

1> Different filling volume can be set on HMI directly,

2> Fast to adjust for different bottle within 10-20 min.;

3> Servo motor driven, High Filling Accuracy within ±0.5%.
(depends on the material and filling volume).

4> CE , ISO and SGS approved and production comply with GMP standard;

5> Hygienic tri-clamps connection , easy to remove and clean;

6> CIP cleaning function available;

7> Buffer tanks with level control system;

8> Mature alarm system for safe operation;

9> Special designed anti-dropping nozzle, with sucking function;

10> Adopts international first-class electric and pneumatic configuration;
Mistubishi / Siemens / Delta PLC and touch screen,
Schneider/ omron low Voltage electricals, and Autonics sensor.
