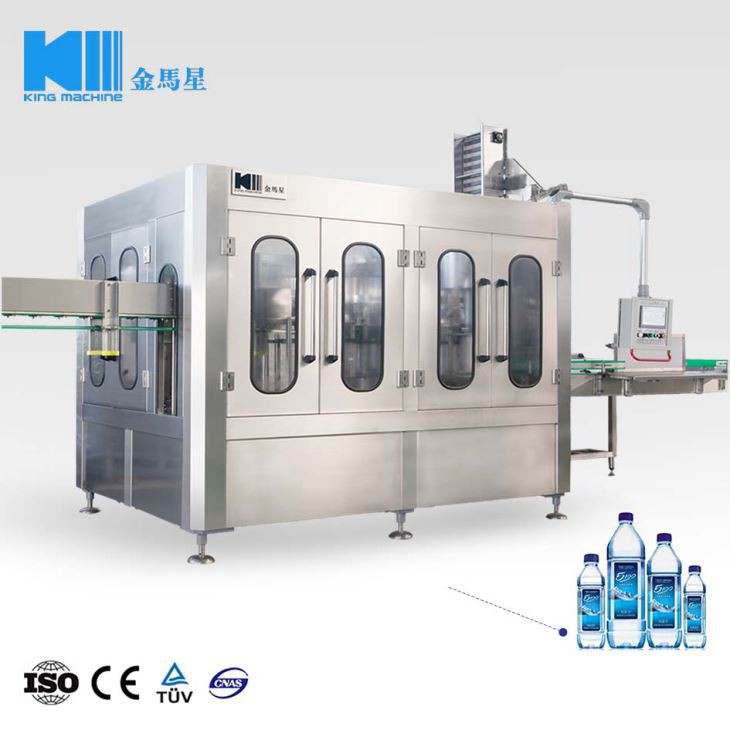

Automatic Bottle Washing Filling Capping Machine
Automatic Bottle Washing Filling Capping Machine has three functions: bottle washer machine, filling machine and capping machine.
It is fully automated and suitable for high temperature resistant PET bottled beverages or mineral water, purified water and many other non-gas free drinks.
It reduces the touch time of materials and outsiders, improves hygiene, productivity and economics.
Product Introduction
King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of automatic bottle washing filling capping machine in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.
Description
Automatic Bottle Washing Filling Capping Machine has three functions: bottle washer machine, filling machine and capping machine. It is fully automated and suitable for high temperature resistant PET bottled beverages or mineral water, purified water and many other non-gas free drinks. . It reduces the touch time of materials and outsiders, improves hygiene, productivity and economics.
Parameter
| Model | Washing heads | Filling heads | Capping heads | Capacity(b/h) 500ml | Motor power (KW) | Overall dimension (mm) |
| CGF14-12-5 | 14 | 12 | 5 | 2000-4000 | 1.5KW | 2100x1400x2500 |
| CGF18-18-6 | 18 | 18 | 6 | 5000-7000 | 2.2KW | 2460x1720x2650 |
| CGF24-24-8 | 24 | 24 | 8 | 8000-12000 | 3KW | 3100x2100x2650 |
| CGF32-32-10 | 32 | 32 | 10 | 12000-15000 | 4KW | 3500x2500x2650 |
| CGF40-40-10 | 40 | 40 | 10 | 16000-20000 | 7.5KW | 4600x1800x2650 |
| CGF48-48-12 | 48 | 48 | 12 | 20000-24000 | 9.5KW | 5200x4500x3400 |
| CGF60-60-15 | 60 | 60 | 15 | 25000-30000 | 12KW | 6500x4500x3400 |
Features
Automatic Bottle Washing Filling Capping Machine is controlled by PLC and touch screen is used as human machine interface. The amount of beverage in the beverage can is automatically controlled.
The filling speed is fast and the liquid volume is accurately controlled. When no bottles or bottles are damaged, the filling can be stopped automatically.
The system uses advanced automatic cleaning technology. The pneumatic valve and the damper gear are used for bottle conveying, the noise is low, and the whole machine runs smoothly.
The magnetic torque is used for the screw cap and the power of the screw cap can be adjusted without steps. The power of the screw cap can also be fixed and the cover will not be damaged. When the cap is insufficient, an alarm will be generated and the cap will be automatically fed.
