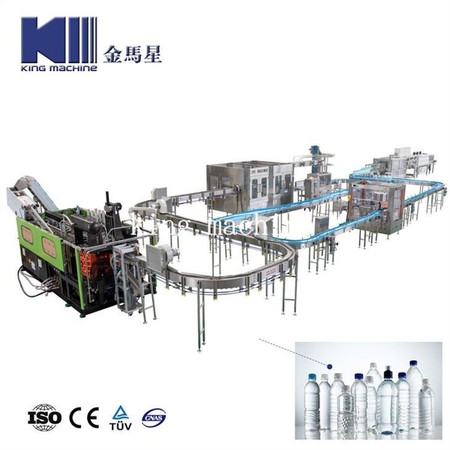

Mineral Pure Spring Water Production Line
Mineral water, purified water, drinking water, flavor water , soda water , alkaline water , spring water and low alcoholic drinks.
Product Introduction
King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of mineral pure spring water production line in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.
Mineral Pure Spring Water Production Line
Model | CGF8-8-8-3/4 | CGF12-12-5/6 | CGF18-18-6 | CGF24-24-8 |
Application | Spring water / mineral water / pure water / non-gas wine drink and so on | |||
No. of Rinsing/Filling/Capping | 8-8-3/4 | 12-12-5/6 | 18-18-6 | 24-24-8 |
Production Capacity(500ml) | 2000BPH | 4000BPH | 6000-7000BPH | 10000~12000BPH |
Filling precision | ≤±5mm(liquid level) | |||
User Ambient Conditions | Temperature:10~40ºC; Humidity: No dew | |||
Suitable bottle specification | Volume=100-2000ml Diameter φ=50-100mm Bottle height H=150 ~340mm | Volume=100-2500ml Diameter φ=50-110mm Bottle height H=150 ~340mm | ||
Bottle type | Plastic bottle / PET Bottle | |||
Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm | |||
Machine material | Food stage SS304 OR SS316 | |||
Air source pressure | 0.5~0.6Mpa | |||
Filling way/principle | Gravity filling method | |||
Control system | SIMENS PLC+ TOUCH SCREEN | |||
Features | No Bottle No Filling No Bottle No Capping | |||
Main Power | 1.9kw | 3.5kw | 4.0kw | 4.8kw |
Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement | |||
Overall dimensions (mm) | 1900*1420*2000 | 2050*1800*2400 | 2580*2100*2200 | 2780*2200*2200 |
Weight (kg) | 1500 | 2500 | 3500 | 4500 |
All machines could be customized , we could design design and produce machines according to your request. | ||||
Model | CGF32-32-10 | CGF40-40-10/12 | CGF50-50-12/15 | CGF60-60-15 |
Application | Spring water / mineral water / pure water / non-gas wine drink and so on | |||
No. of Rinsing/Filling/Capping | 32-32-10 | 40-40-10/12 | 50-50-12/15 | 60-60-15 |
Production Capacity(500ml) | 16000-17000BPH | 19000-20000BPH | 23000-24000BPH | 34000~36000BPH |
Filling precision | ≤±5mm(liquid level) | |||
User Ambient Conditions | Temperature:10~40ºC; Humidity: No dew | |||
Suitable bottle specification | Volume=100-2500ml Diameter φ=50-110mm Bottle height H=150 ~340mm | |||
Bottle type | Plastic bottle / PET Bottle | |||
Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm | |||
Machine material | Food stage SS304 OR SS316 | |||
Air source pressure | 0.5~0.6Mpa | |||
Filling way/principle | Gravity filling method | |||
Control system | SIMENS PLC+ TOUCH SCREEN | |||
Features | No Bottle No Filling No Bottle No Capping | |||
Main Power | 5.5kw | 7.5kw | 11.0kw | 15.0kw |
Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement | |||
Overall dimensions (mm) | 3800*2800*2600 | 4600*2800*2600 | 5450*3300*2600 | 6500*4500*2600 |
Weight (kg) | 6500 | 8500 | 9800 | 12800 |
All machines could be customized , we could design design and produce machines according to your request. | ||||
