Plastic Soft Tube Filling and Sealing Machine

Complete Pet Bottle Mineral Drinking Water Filling Machine Products Introduction: This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery...

Send Inquiry

Product Introduction

King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of plastic soft tube filling and sealing machine in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.

Products Introduction:
Our KING MACHINE water filling machine project history proves our ability to deliver high-quality bottling solutions to diverse global markets. This 3-in-1 monoblock water filler is designed for the high-volume production of mineral water in polyester bottles. The water filling machine ensures that every stage of the process is automated and hygienic. Our KING MACHINE water filling machine is a cost-effective solution that provides a rapid return on investment. By implementing our water filling machine, you can improve your factory's production capacity and economic efficiency.
water filling machine.jpg

product-1-1

Technical parameter:

Containers and specifications
Project Name: Full Automatic Complete Mineral Water 2000-20000bph Production Line							PH≥4.6drinking water
material	shape	Filling volume(ml)		Filling level(mm)			Neck type
PET Bottle	Square or Round Bottle	100-2000ml		Distance from bottle neck According request			As request
Adjustable specifications of the bottle type	Middle Mould Base: Bottle diameter ≤105mm Bottle Height≤335mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.
Container Label & Control Mode			Packaging system			Palletizing system
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic			Packing system		Min, Spec.	Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer
			Manual Film shrinker Wrap Around packer Robert Packing Machine		12 23 34 46 3*5
User Ambient Conditions:			Temperature:10~40ºC;Humidity:No dew
User Electrical Supply Specification			Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Model	Washing heads	Filling heads	Capping heads	Capacity(b/h) 500ml	Motor power (KW)	Overall dimension (mm)
CGF14-12-5	14	12	5	2000-4000	1.5KW	2100x1400x2500
CGF18-18-6	18	18	6	5000-7000	2.2KW	2460x1720x2650
CGF24-24-8	24	24	8	8000-12000	3KW	3100x2100x2650
CGF32-32-10	32	32	10	12000-15000	4KW	3500x2500x2650
CGF40-40-10	40	40	10	16000-20000	7.5KW	4600x1800x2650
CGF48-48-12	48	48	12	20000-24000	9.5KW	5200x4500x3400
CGF60-60-15	60	60	15	25000-30000	12KW	6500x4500x3400

Equipment characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON.
Complete Bottling Mineral Water Filling Line.jpg product-1-1

Flow chart (Drinking water filling machine):

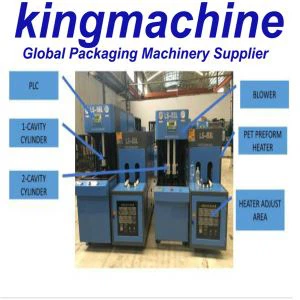

A)Bottle production line PET ResinInjection moulding machineBotlte blowing machinePET bottle
B)Water treatment system Raw waterPumpSilica sand filterCarbon filterWater softnerReverse OsmosisUV sterilizerOzone generatorFinished water tank
C)Filling&Packing part Bottle unscramblerAir conveyorWashing,filling,capping 3in1 machineLight checkerBlow dryerDater printerLabeling machinePacking machineStock

3000BPH(500ml).jpg product-1-1 Flow chart of Complete Bottled Mineral Water.jpg

Our Services:
1. Well-trained & experienced staff are to answer all your inquiries in English and Chinese
2. 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
3. 12 Months guarantee and life-long technical support.
4. Your business relationship with us will be confidential to any third party.
5. Good after-sale service offered, please get back to us if you got any questions.
product-1-1 Quality guarantee.jpg

Company Information:
Zhangjiagang king machine Co., Ltd .was founded at 1995,and starting with beverage machinery.It is located at Zhangjiagang city Nanfeng industrial town,We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry .
Our Main products including: Pure/mineral water and purified water producing line, carbonated beverage producing line, 3 gallons& 5gallons producing line. Flat and tube UHT device, and CIP system. All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect.
