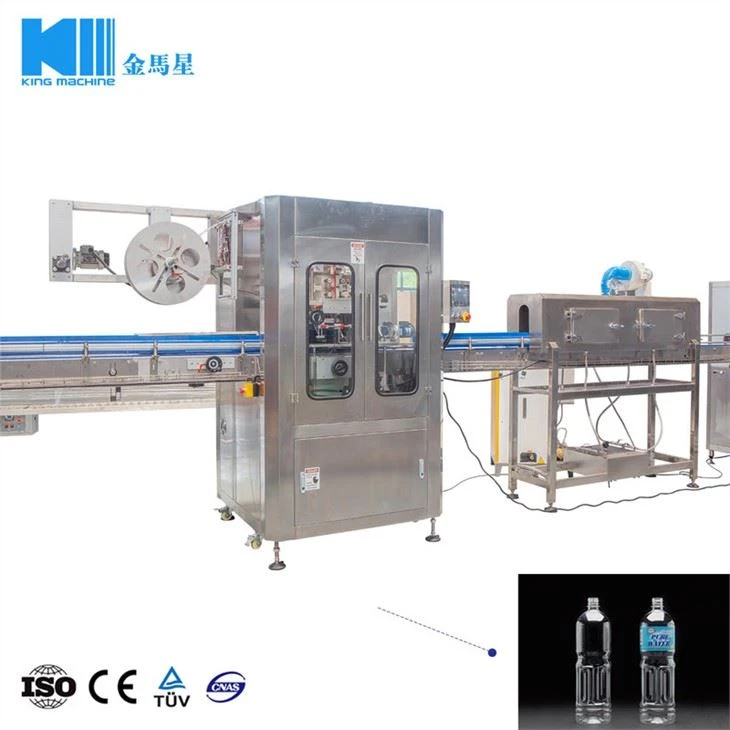

PVC Shrink Sleeving Labeling Machines
This shrink sleeve labeling applicator function is for PVC label shrink on the bottle ,used for beverage bottle package solution ,international advanced technology ,cover the circle label on PET bottle ,And then hot shrinking to fix on the position which bottle body designated. The machine's structure is compact,and suitable for the production line of different direction and different height ,The machine part adopts combination designing of modularization ,and make the machine reasonable ,the height adjustment adopts motors fluctuating,it is convenient to replace the material ,The special cutter head designing ,make the film rolling cut more exactly and reliably.
Product Introduction
King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of pvc shrink sleeving labeling machines in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.
PVC Shrink Sleeving Labeling Machines

Product Description


| Specification | Automatic Self-adhesive Labeling Machine. |
| Speed | 50~180 bottles/minutes according to the specification of bottle and label |
| Packaging Details | Label size (L: 20-150mm W: 10-250mm) Bottle Size (D: 10-150mm H: 30-350mm) |
| Power | 500W 220V 1Ph 50-60Hz |
| Overall Size | 1800*1000*1500 mm |
| Weight | 420 Kg |
| Label Position | Single label / Front and back double sides / Front back neck three sides |

| Technical Parameter | ||
| Model | SPC-150B | SPC-250B |
| Capacity (on the base label length :500ml) | 3000BPH-6000BPH | 6000BPH-10000BPH |
| Label size | Diameter 50-110mm | Diameter 30-125mm |
| Bottle heights | heights 50-200mm | |
| Bottle diameter | Diameter 40-120mm | Diameter 28-125mm |
| Label sleeve length | 40-150mm | 30-250mm |
| Thickness | > 0.035mm | |
| Label material | PVC/ PET | |
| Electrical power | 2.5KW (380V 50HZ) | |
| Overall diameter | 2440*890*2200mm | |
| Weight | Approximate 750KG | Approximate 950KG |

| Specification:( Automatic Cold Glue Labeling Machine. ) | |
| Range of output capacity | 3000-12000 b/h |
| Label Width | 50-130 mm |
| Capacity of Label Box | 7000 pieces |
| Main Motor Power | 3 KW |
| Air Pressure | 0.35-0.5 Mpa |
| Air Flow | 0.9 m3/min |
| Weight | 2000 kg |
| Overall Dimension | <L*W*H> 1800 * 1400 * 2000 mm |
