Fully Automatic 4 Cavities Blow Moulding Machine

Fully Automatic 4 Cavities Blow Moulding Machine

Name: China Fully Automatic 4 Cavities Blow Moulding Machine Manufacturers Suppliers Factory - King Machine
Brand: King Machine
SKU: 168582461

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Send Inquiry

Product Introduction

King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of fully automatic 4 cavities blow moulding machine in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.

Fully Automatic 4 Cavities Blow Moulding Machine

PET Bottle Blowing Equipment Fully Automatic 4 Cavities Blow Moulding Machine For Plastic Bottles 100-2000ML
We produce NB series of fully automatic, semi-automatic PET blow molding machines and other 0.1L-2L Full Automatic Blow Molding Machine with output from 1000 to 8000 bottles per hour, which can satisfy different customers' requirements. Our products Certificated by CE. In order to meet customers' specific requirements, factory offer product capacity ranges from 50ml to 30L, suitable for all kinds of PET bottles which contain mineral water, carbonated beverages, fruit juice, teas, edible oils cosmetics, detergents, and wide-mouth jar, etc. Navan Machinery is an ideal choice for large beverage factories, mineral water companies, and PET packaging enterprises.

Automatic Stretch Blow Moulding MachineTechnical Parameters:
Number of Cavities	1,2 , 3 , 4 , 5, 6, 8 , 9 , 10 , 12
Filling speed:	1,000-24,000BPH (500ml)
Type of Bottle	250ML 330ML 355ML 500ML 750ML PET Bottle
Bottle height	150-340(mm)
Bottle diameter	Φ50-110(mm)
Bottle Material	PP , PET
Blowing type	Stretch Blowing
Filling product	Bottle carbonated dirnk , wine , whisky , Vodka , Beer , Kvass, kombucha , fruit juice , flavor juice , fruit juice with pulp ,Mineral water, purified water, drinking water, flavor water , soda water , alkaline water , spring water and low alcoholic drinks.

PET Bottle Blowing Equipment Fully Automatic 4 Cavities Blow Moulding Machine For Plastic Bottles 100-2000ML

Using advanced microcomputer control system, stable performance. Automatic delivery of embryos. Infrared tube heating, strong penetrating power, uniform heating, fast and reliable. Each mechanical action has a self-locking device. When a process fails, the program will automatically switch to a safe state. All action cylinders are driven, pollution-free and low noise. The clamping force is strong by adopting high pressure and double crank arm connecting rod. It can be in manual or automatic mode. Easy to install, the production process is fully automated, easy to operate, simple to maintain, safe, hygienic, high yield and efficiency.

New Auto Preform Unscrambler System.

*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.

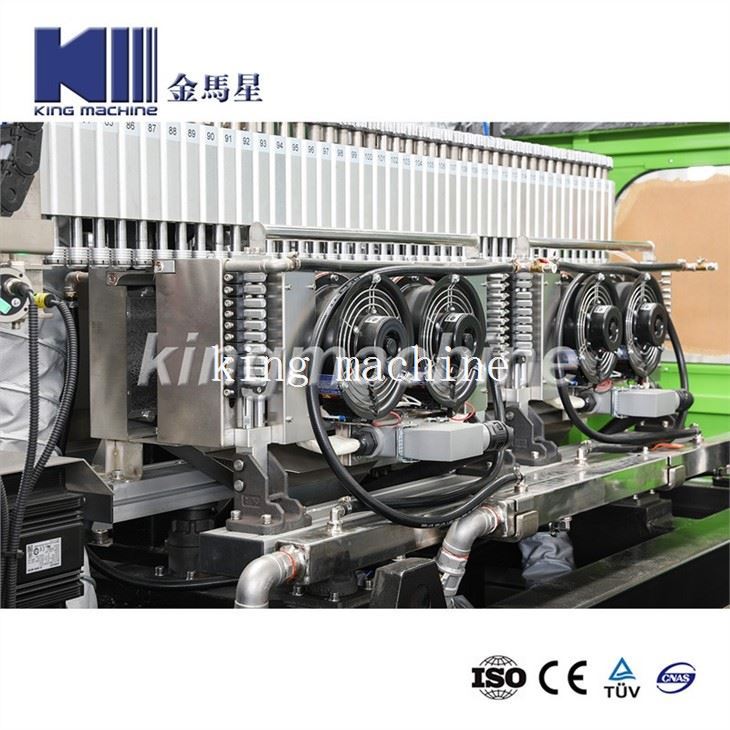

New Heating System.

*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.

Easy To Change Bottle Shape.

*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.

Container	Max Container Volume Itr	2
	Max Neck Diameter mm	50
	Max Container diameter mm	110
	Max Container Height mm	320

Model		KM-A4	KM-A4S
Molding	Clamping Force kg	22000	22000
	Clamping Stroke mm	125	125
	Stretching strok mm	450	450
	Bottom Stroke mm	40/70	40/70
	Cavity Spacing mm	120	120
	Number of Cavities	4	4
	Carriage Unit pcs	124	124
Theoretical Output	BPH	3500-4000	5500-6000
Electrical System	Total Power kw	50	52
	Heating Power kw	32x1.5KW=48	32x1.5KW=48
	Number of Lamp Layers Layers	8	8
Air System	Operating Pressure kg/cm²	7-9	7-9
	Low Pressure Air Consumpt Itr/min	2000	1600
	Blowing Pressure kg/cm²	20-30	30-40
	High Pressure Air Consumpt Itr/min	3200	4000
Chiller	Operating Pressure kg/cm²	2-4	2-4
	Temperature Range ºC	10-12	10-12
	Consumption kcal/hr	2000	2500
	Flow Rate Itr/min	250	250
Main Machine	Main machine dimensions mm(LWH)	3000 x2130x2150	3000 x2130x2150
Main Machine	Main Machine Weight kg	4000	4150
Preform Loader	Preform Loader Dimensions mm(LWH)	2350x1350x2650	2350x1350x2650
Preform Loader	Preform Loader Weight kg	550	550
