Automatic PE Film Heat Shrink-Wrapping Packing Machine
The machine is developed especially for mineral water, beverage wine, beer, product and soon infusion medicine bottle combination packaging, with stable function, and the packed articles tight and orderly. It can be handled as a single pushing machine when high speed demanded.
Product Introduction
King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of automatic pe film heat shrink-wrapping packing machine in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.
Automatic PE Film Heat Shrink-Wrapping Packing Machine

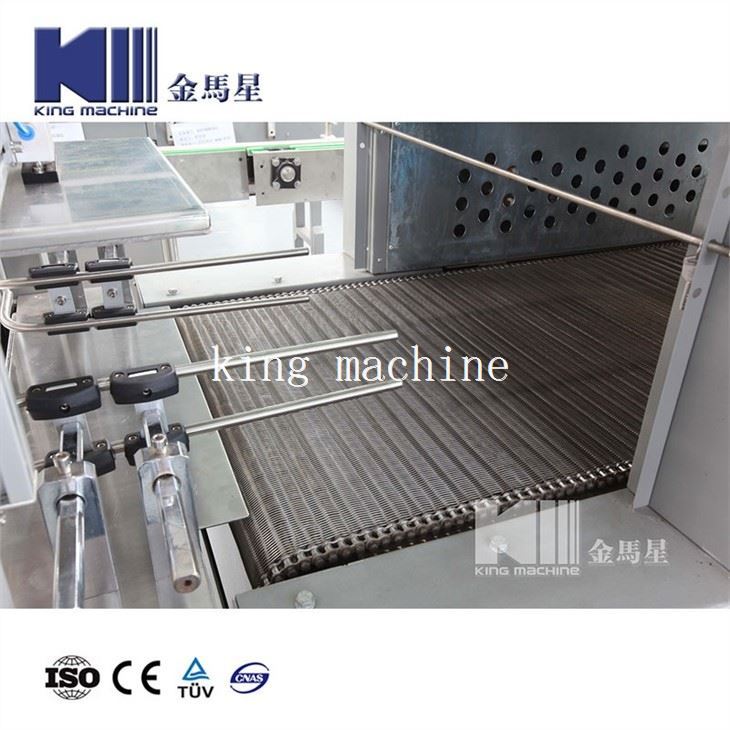

Specially designed for packaging production line of beer, beverage, pure water, fruit juice, dairy products, etc. With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping, etc. Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal. The quick seal cooling structure guarantee that the seal has a higher strength even if under high speed production condition.
| Technical Parameter | |
| Dimension for the whole unit | L6500mm*W3200mm*H2100mm |
| Thermal shrinkage passage dimension | L1800mm*W650mm*H400mm |
| Max package dimension | L600mm*W400mm*H350mm |
| Packaging speed | 10-12packs/minute |
| Transfer belt width | 530mm |
| Sealing and cutting time/temperature | 0.5-1.5s 140°C-160°C |
| Operating power supply/power | 380V 18kw |
| Operating air pressure | 0.6-0.8Mpa |
| power | 28KW | PE Film | thickness:0.03-0.10mm width: <600mm |
| Air consumption | 25m3/H, >0.6Mpa | Weight | 1.5 ton |
| Speed | 20-25 bag/minute | Dimension | L12000*W1100*H2100mm |
| Bottle Diameter | Diameter 60-90 mm height < 330mm | Wrappage max size | L2400*W650*H450mm |
| Machine Model | ROY-20BT |
| machine size | L14000*W1250*H2100 |
| Shrink tunnel | 4200×1100×1700mm |
| conveyor | 3000×1200×950mm |
| max wrapping size | L420×W280×H350mm |
| shrinking film materia | PE |
| thickness of shrinking film | 0.03-0.15mm |
| thermo shrinkage tunnel max temperature | 160 - 260°can adjust |
| machine power | 30KW |
| voltage requirement | 3phase,380V/50-60HZ |
| air pressure | 0.6-0.8mpa |
It is a drop-in compatibility, applicable to different specifications carton packing machine,the bottle effectively stand in line to the top of the carton, in accordance with the packing requirements, automatic position device to ensure that the bottle is packed by product fall into the carton, this machine adopts PLC touch display control, alarm device. no bottle no packing security.
| Technical parameters | |
| Packing type | Round Bottle, glass bottle. PET bottle, cans |
| Container volume | 250ml-2000ml |
| Scope of bottle height | 100-350(mm) |
| Scope of bottle diameter | 57-100 or large(mm) |
| Capacity | 15 cartons/min |
| Machine dimension | L6285*W2582*H2115mm |
| Folding carton dimension | 550<L+W+H<1000 |
| Hot melt adhesive solidify time | 1.5-2 S |
| Working air pressure | 0 4-0.7Mpa |
| Power | 6kw |
| Weight | 4000kg |
