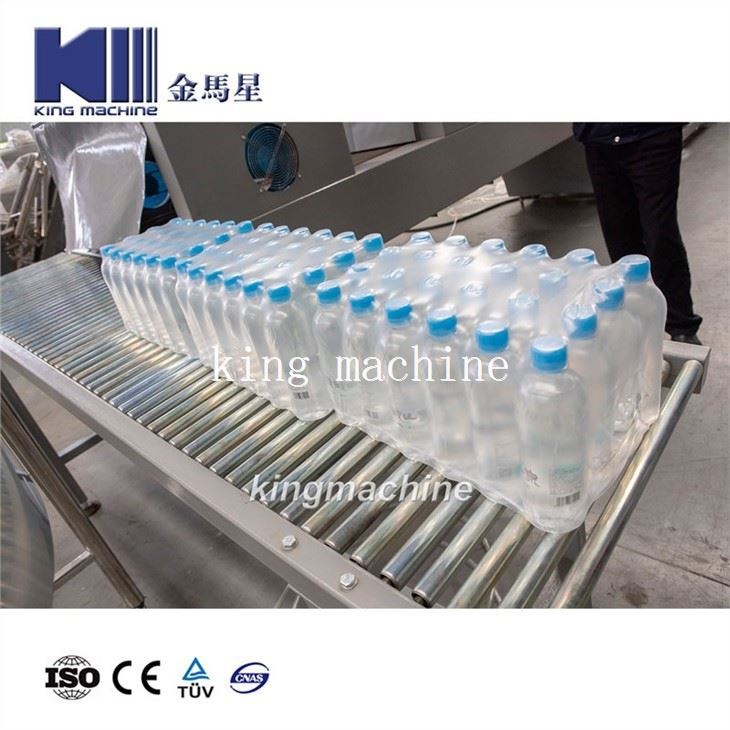

Automatic PE Film Shrink Wrapping Machine For Mineral Water
The machine is developed especially for mineral water, beverage wine, beer, product and soon infusion medicine bottle combination packaging, with stable function, and the packed articles tight and orderly. It can be handled as a single pushing machine when high speed demanded.
Product Introduction
King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of automatic pe film shrink wrapping machine for mineral water in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.
Automatic PE Film Shrink Wrapping Machine for Mineral Water
Mineral water thermo shrink packing machine
Technical parameter:
Facility type KM-150A type
Facility external size L5050× W3300× H2100mm
Wrappage max size L600× W400× H350mm
Shrinkage film size PE\PVC\POF
Shrinkage thermo thickness 0.03-0.15mm
Thermo shrinkage tunnel temperature: 160 - 260° Can adjust at will.
Max output per minute 8-12bag
Facility power 18Kw
Actual power 15Kw/hr
Pressure requirement 380/220V
Facility weight 1.2T
Fan machine 1.1Kw 2set 380V, 65W 4set 380V
Facility basic configuration
Weinview touch screen, Pnasonic PLC controlling system
Taiwan AIRTAC pneumatic component 1set
Taiwan Teco frequency converter 3 set
Stainless steel wing heating tube 12 piece
China-America cooperation Teflon convey belt.
Shanghai Hemei electric-motor and Zhejiang Taili worm speed-regulation machine.
South-Korea Autonics photoelectric switch, proximity.
Thermo sealing knife Aluminum-mould heating board, even temperature, long life, our company special production.
Whole machine plastic-sprayed, machine rack adopt to high-quality carbon steel, main part adopt to stainless steel.
Bottle convey machine length 2600mm
Carton and wrappage film pack separately.
Product description
Frequency converter speed adjust\two segment convey device.
Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
Proximity switch control film length.
Touch screen, PLC system greatly increase facility movement reliability.
Double-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
Super big wind-volume cooling system, ensure quickly get into shape.
Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
Frequency limitless speed adjust convey belt frame.
Convey belt height can make according client requirement, adjust range: ± 50mm
Bottle convey machine can meet with client bottle forward direction requirement, can lengthen or shorten.
Wing stainless steel heating system, endurance.
Meet with product instant stop requirement product-bearing rack device ensure production line consistency.
Technical condition and requirement
1. Package type
(1) 350/500/550/600ML big bag: 4*6, 4*5 small bag\3*4, 3× 5 four type of package.
(2) 1L/1.5L/2L/2.5L big bag: 3× 3, 3× 4; Small bag\2× 2, 2× 3 four type of package
2. Regarding can, we suggest adopt to package with tray, pack steadily.
3. Package speed 8-15bag/min
4. Meet with pre-treatment filling speed of filling machine.
(1) 350/500/550/600ML big bag: 4*6, 4*5, (12000-15000b/hr)\small bag: 3*5, 3*× 4, (8000-10000b/hr).
(2)1L/1.5L/2L big bag 3*4, 3*3(5000-6000b/h)\ small bag 2*3, 2*2(3000-4000b/h).
5. Package material: PE thermo shrinkage film width(200-600mm),
Thickness(0.08-0.12mm)
| no | Name | specification | number | brand | ||
| 1 | board production component | |||||
| 2 | Plant metal component | |||||
| 3 | pneumatic component | 1 | Taiwan Airtec | |||
| 4 | Electric controlling component and accessory | |||||
| Photoelectric switch | 4 | South Korea Autonics | ||||
| Proximity switch | 2 | South Korea Autonics | ||||
| PLC | 1 | Panasonic | ||||
| Touch screen | 1 | WEINVIEW | ||||
| Frequency converter | 3 | Taiwan Teco | ||||
| AC contactor | 3 | France Schneider | ||||
| Mid-relay | 8 | OMRON | ||||
