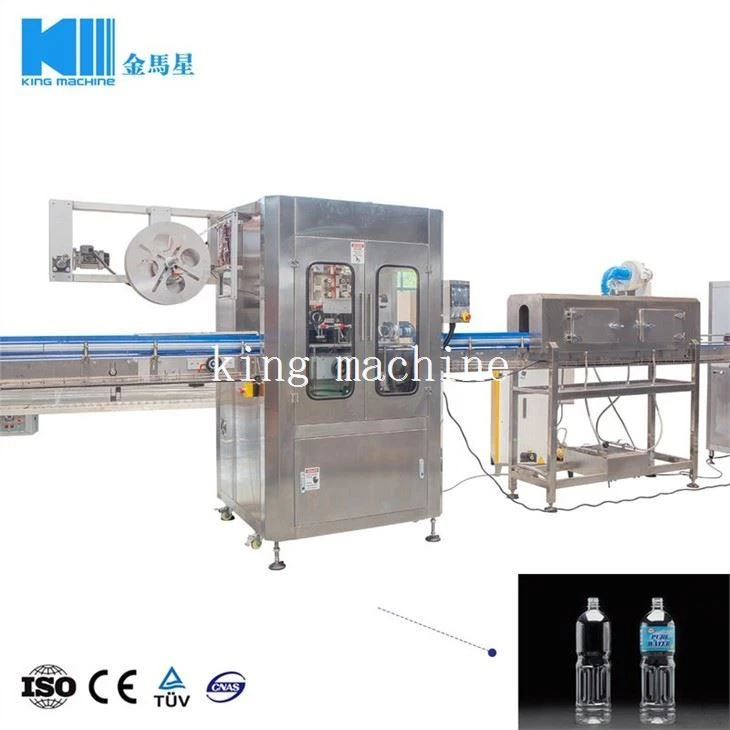

Vapor Shrink Labeling Machine

Name: China Vapor Shrink Labeling Machine Manufacturers Suppliers Factory - King Machine
Brand: King Machine
SKU: 167313309

This shrink sleeve labeling applicator function is for PVC label shrink on the bottle ,used for beverage bottle package solution ,international advanced technology ,cover the circle label on PET bottle ,And then hot shrinking to fix on the position which bottle body designated. The machine's structure is compact,and suitable for the production line of different direction and different height ,The machine part adopts combination designing of modularization ,and make the machine reasonable ,the height adjustment adopts motors fluctuating,it is convenient to replace the material ,The special cutter head designing ,make the film rolling cut more exactly and reliably.

Send Inquiry

Product Introduction

King Machine Co., Ltd. is one of the most experienced manufacturers and suppliers of vapor shrink labeling machine in China. Please feel free to buy high quality machines for sale here from our factory. Good service and reasonable price are available.

Vapor Shrink Labeling Machine

Main performance features
This machine is a fully automatic intelligent packaging line that integrates the functions of sending bottles, cutting labels, wrapping labels, and shrinking labels. High-speed, precise positioning, save manpower, and perfect packaging effect are the spirit of this device design. It's suitable for beverage, condiment, cosmetics and other related products packaging, with beautiful appearance, easy to clean and maintain.
Driven part
Synchronous mechanism transmission, any transmission belt replacement can be quickly completed, compared with the traditional multi-layer arm type(replacement and repair takes more than six hours) easier to maintain, simple maintenance, and will not affect production.
Cutter plate group
The new cutter design uses a servo motor to drive, high speed, stable and accurate movement, flat incision, beautiful shrinking effect, and with the label synchronous positioning mechanism, the incision positioning accuracy is as high as 1mm. The unique design of the cutting knife is suitable for 30mm to 130mm containers, no debugging, and the original sensor of the knife plate is placed inside the knife plate. When disassembling the knife plate, there is no need to correct the position of the synchronous belt. PLC controls the automatic search for the original point positioning. Safe and convenient, its leading product of the same kind.
Label feeding part
Single shrink label supply plate design, moderate height, easy to install the label; Use frequency converter and photoelectric sensor with mechanical buffer device to control the tension of the roll, so that the label transmission is stable and smooth, and when there is no film material, it is automatically shut down and displayed in touch screens in English and with warning lights . The unique over high label test allows the equipment to find the error of the label in time during the standard setting process, and prevents unqualified products flowing into the downstream process.
Label sending brash
Adopt a motor with double-sided arc synchronous belt to synchronize the brush wheel to ensure the stability of the subscript.
Bottle feeding part:
Adopt mechanical drive to drive bottle with positioning belt. When changing the specifications of bottles, the lifting and narrowing of the bottle feeder adopts a hand-wheel synchronization adjustment to achieve rapid and convenient adjustment.
Platform lift group: using electric lift, more convenient operation.

Technical parameters
Type KM
Production capacity: ≥ 12000 BPH(elevation ≤ 60mm) ≥ 5000 BPH(elevation ≤ 250mm)
Package pass rate :≥ 99.9 %
Whole line production performance :≥ 99 %(calculated in 24 hours)
Bottle diameter: 28mm ~ 125mm, special size can be designed separately
Bottle height: 30mm-280mm, special height can be designed separately
The vertical degree of the bottle :≤ 1. 0 °
Applicable to labels :PVC, PET, OPS
Label length :30mm ~ 250mm
Label thickness :0.027 mm ~ 0.13 mm
Label materials :PVC, PET, OPS
Label transparent spacing :≥ 5mm
Inner diameter :≥ 4 "(101.6 mm)
Volume Mark external diameter :≤ 500MM
Voltage :220V
Set power :3KW
Host external size :2000 X1000X 2200mm(length × width × height)
Whole weight: 500 kg
